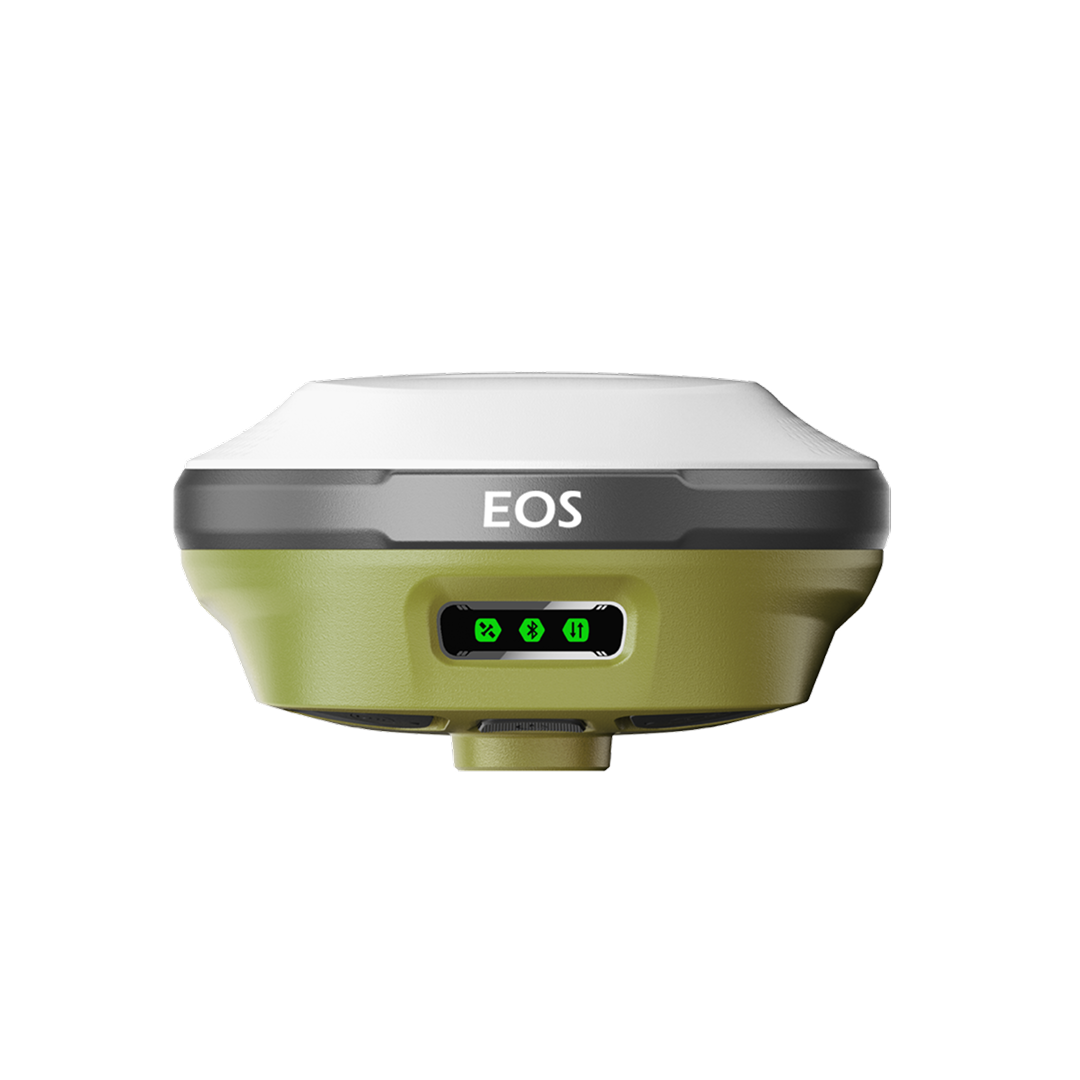

The RinoNav EOS is an advanced GNSS RTK receiver that integrates visual positioning, laser measurement, IMU tilt compensation, and AR stakeout technology into a single compact device. Designed for surveying, construction, GIS, and engineering applications, it delivers fast, accurate, and efficient data collection, even in challenging environments and hard-to-reach locations.
The RinoNav EOS is an advanced visual GNSS receiver that combines laser ranging, dual-camera vision technology, AR stakeout, GNSS RTK positioning, and IMU tilt compensation into a single high-performance surveying solution. Designed for modern surveyors, engineers, and construction professionals, the EOS enables accurate measurements in environments where traditional surveying methods are difficult or unsafe. housing and wide operating temperature range make it suitable for demanding field conditions. and high-precision RTK positioning, delivering efficient and accurate surveying performance in challenging environments. that combines laser measurement, dual-camera vision technology, AR stakeout, and GNSS positioning into one device. ors to measure inaccessible points without physically reaching them.
| Feature / Specification | Details |
|---|---|
| Product Name | Rinonav EOS |
| Product Type | RTK GNSS Receiver |
| GNSS Channels | 1408 |
| Supported Constellations | GPS, BeiDou, GLONASS, Galileo, NavIC, QZSS, SBAS, L-Band PPP |
| Update Rate | Up to 20 Hz |
| Signal Reacquisition | < 1 Second |
| Cold Start | < 30 Seconds |
| Warm Start | < 20 Seconds |
| Hot Start | < 5 Seconds |
| RTK Initialization | < 5 Seconds |
| Initialization Reliability | > 99.9% |
| Feature / Specification | Details |
|---|---|
| RTK Accuracy | Horizontal: 8 mm + 1 ppm RMS Vertical: 15 mm + 1 ppm RMS |
| Static Accuracy | Horizontal: 2.5 mm + 0.1 ppm RMS Vertical: 3.5 mm + 0.4 ppm RMS |
| Fast Static Accuracy | Horizontal: 2.5 mm + 0.5 ppm RMS Vertical: 5 mm + 0.5 ppm RMS |
| Standard Positioning | Horizontal: 1.5 m RMS Vertical: 2.5 m RMS |
| Correction Formats | RTCM V3.X, RTCM2, CMR |
| Data Output | GGA, ZDA, GSA, GSV, GST, VTG, RMC, GLL, Binary |
Calibration, repair and accuracy testing for most professional brands.
We match the kit to your accuracy needs and budget, no upselling.
Phone, email or WhatsApp a person who actually knows the gear.
Cover project peaks or service downtime with short-term hire.
The RinoNav EOS is a professional GNSS RTK receiver that combines satellite positioning, visual measurement, laser technology, and tilt compensation for high-precision surveying applications.
The EOS is suitable for:
Land Surveying
Construction Layout
Topographic Mapping
GIS Data Collection
Utility Surveys
Engineering Projects
Mining Operations
Infrastructure Development
Yes. The receiver supports RTK technology, providing centimeter-level positioning accuracy for professional survey work.
The EOS supports multiple GNSS constellations, including GPS, GLONASS, Galileo, BeiDou, and other available satellite systems for improved positioning performance.
