Flagship long-range RTK GNSS receiver with a 5 W internal radio reaching up to 15 km, 1,408-channel tracking, 60° tilt, a 15-hour battery and an on-device colour touchscreen in a rugged IP67 magnesium body.

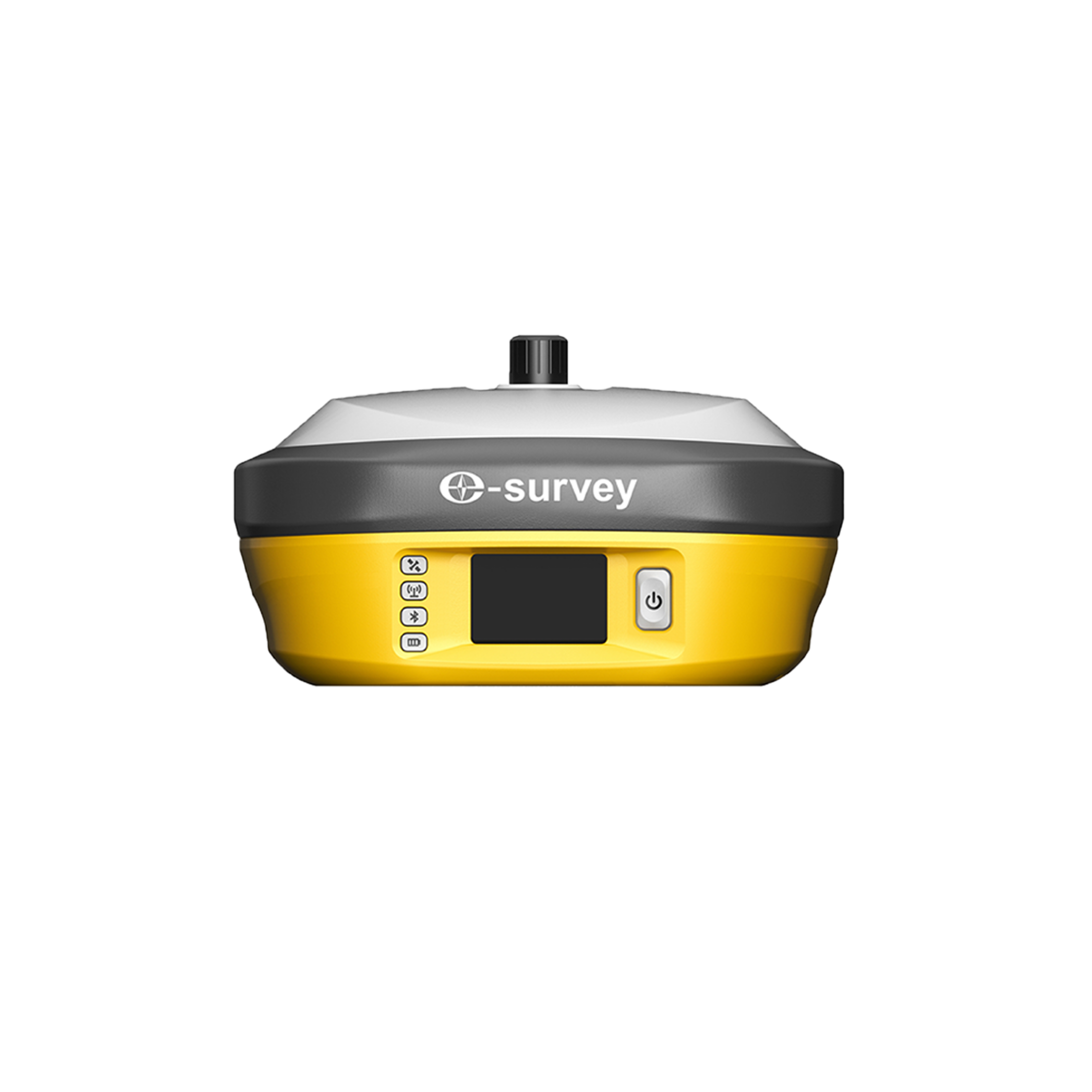

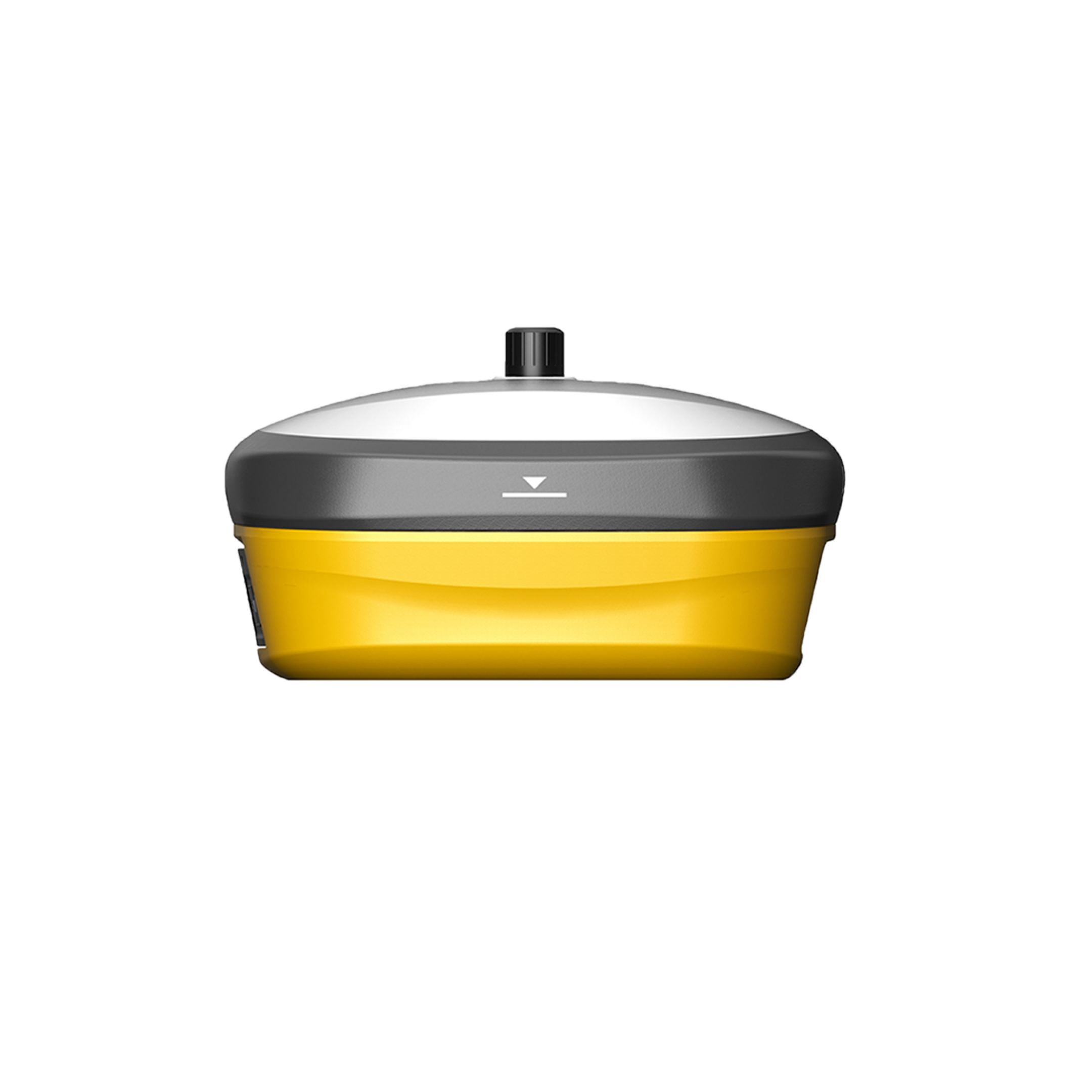

The eSurvey E800 is the flagship of the E-series, a high-performance GNSS RTK receiver for surveyors who need maximum range and uptime. Its standout feature is a powerful 5 W internal UHF radio that pushes base-to-rover distance to 10 to 15 km, removing the need for a separate external radio. A large 13,600 mAh battery delivers up to 15 hours of fieldwork, a 1.45 inch colour touchscreen handles on-device setup, and a MEMS IMU supports 60 degree tilt survey. With 1,408 channels, full multi-constellation tracking and an IP67 magnesium-alloy build, the E800 is built for demanding long-range base-and-rover work.
| Feature / Specification | Details |
|---|---|
| Channels | 1,408 |
| Constellations | GPS, BeiDou, GLONASS, Galileo, QZSS, L-Band |
| RTK initialisation | Under 5 seconds |
| Initialisation reliability | Over 99.9% |
| Update rate | 20 Hz |
| Feature / Specification | Details |
|---|---|
| RTK | H 8 mm + 1 ppm, V 15 mm + 1 ppm |
| Static | H 2.5 mm + 0.5 ppm, V 5 mm + 0.5 ppm |
| PPK | H 3 mm + 1 ppm, V 5 mm + 1 ppm |
| Tilt compensation | Up to 60 degrees |
| Feature / Specification | Details |
|---|---|
| Internal radio | Transmit and receive, 5 W (2 to 5 W adjustable), 410 to 470 MHz |
| Radio range | 8 to 10 km typical, up to 15 km |
| Cellular | Global 4G LTE / WCDMA / GSM |
| Bluetooth | 5.0 / BLE |
| Wi-Fi | 802.11 a/b/g/n/ac |
| Feature / Specification | Details |
|---|---|
| Dimensions | 154 mm dia. x 76 mm |
| Weight | 1.5 kg |
| Battery | 13,600 mAh Li-ion |
| Working time | Up to 15 hours |
| Protection | IP67 |
| Operating temperature | -30 to +65 degC |
| Drop rating | 1.2 m drop, 2 m pole topple |
| Feature / Specification | Details |
|---|---|
| Operating system | Linux |
| Internal memory | 32 GB |
| Screen | 1.45 inch colour touchscreen |
| Body | Magnesium alloy |
Calibration, repair and accuracy testing for most professional brands.
We match the kit to your accuracy needs and budget, no upselling.
Phone, email or WhatsApp a person who actually knows the gear.
Cover project peaks or service downtime with short-term hire.
Its integrated 5 W UHF radio reaches 8–10 km typically and up to 15 km in good conditions, removing the need for a separate external radio.
RTK accuracy is 8 mm + 1 ppm horizontal and 15 mm + 1 ppm vertical, with static surveys down to 2.5 mm + 0.5 ppm horizontal.
Up to 15 hours of continuous work from its 13,600 mAh battery, which recharges in about 5 hours.
Yes. A sunlight-viewable 1.45-inch colour touchscreen handles position status, working modes, data download and firmware updates on the receiver itself.
Yes. A built-in IMU enables fast tilt measurement up to 60°, so points can be measured on the move without levelling.
