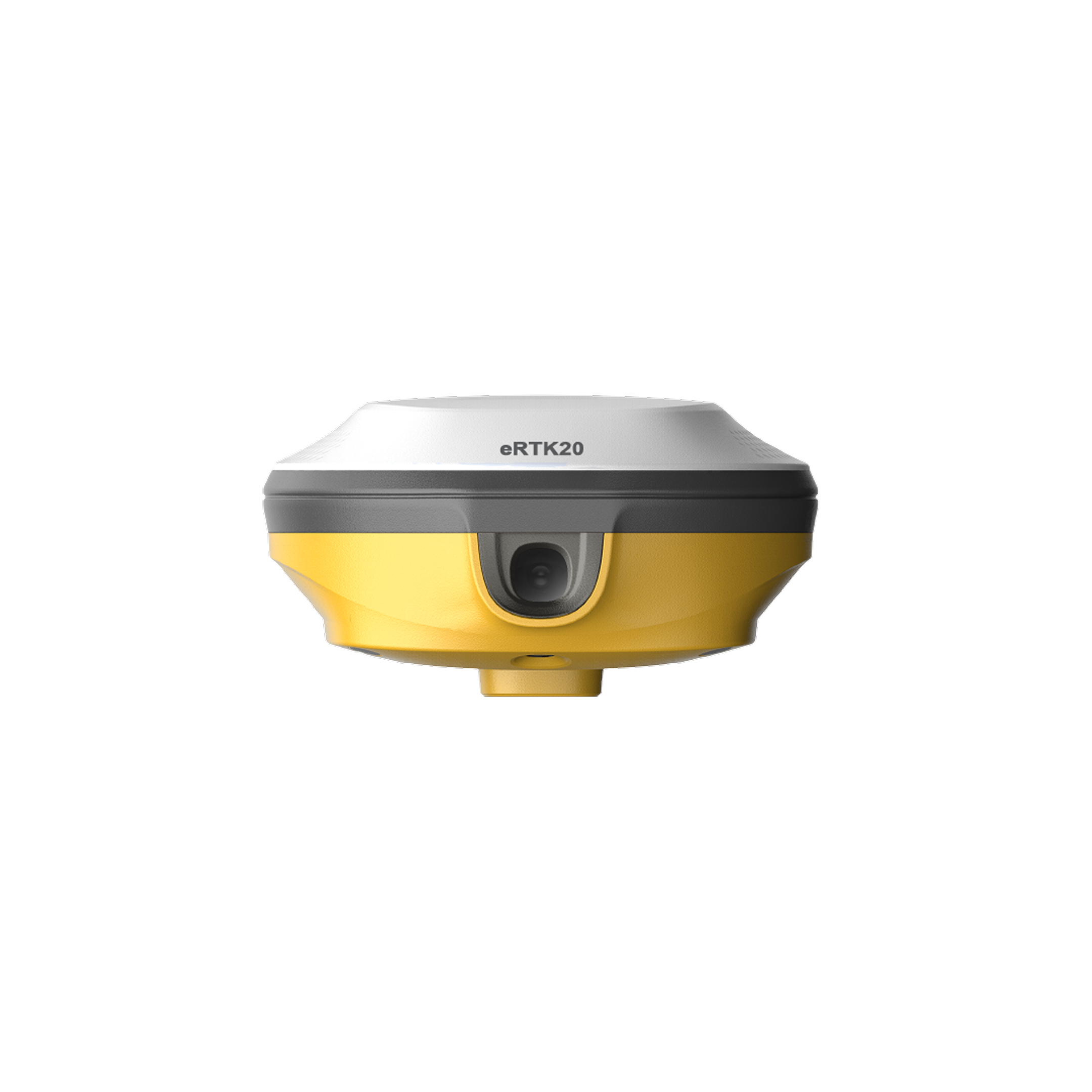

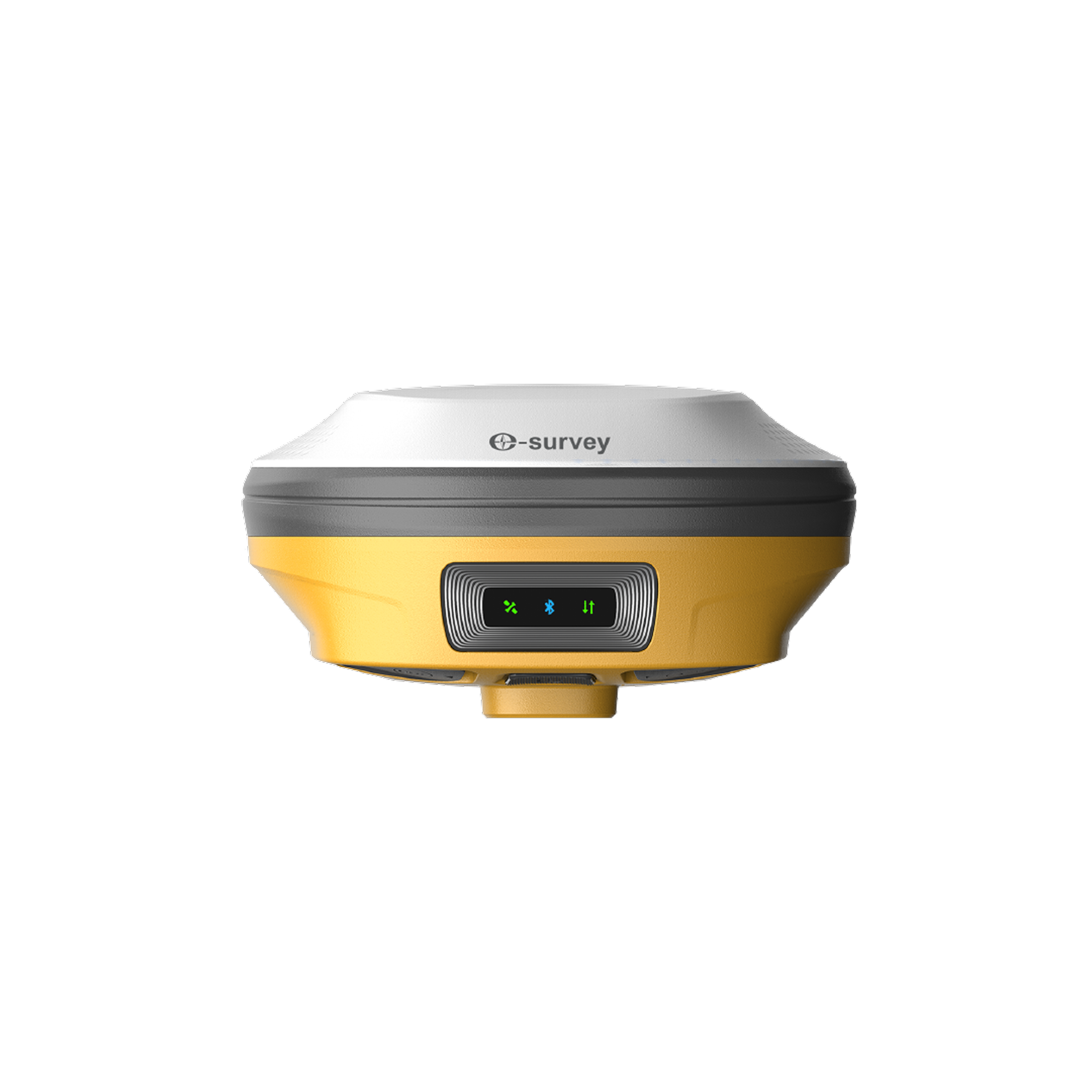

E-Survey eRTK20 is an advanced GNSS receiver featuring AR visual stakeout, 60° tilt survey, dual-camera technology, and centimeter-level RTK accuracy, helping surveyors work faster and more efficiently in the field.
E-Survey eRTK20 is a high-precision GNSS RTK receiver designed for professional land surveying, construction layout, GIS mapping, and engineering applications. It is positioned as a cost-effective RTK solution with modern GNSS technology.
| Feature / Specification | Details |
|---|---|
| Product Name | E-Survey eRTK20 |
| Product Type | RTK GNSS Receiver |
| GNSS Channels | 1408 |
| Supported Constellations | GPS, BeiDou, GLONASS, Galileo, NavIC, QZSS, SBAS & L-Band PPP |
| Update Rate | Up to 20 Hz |
| Signal Reacquisition | < 1 Second |
| Cold Start | < 30 Seconds |
| Warm Start | < 20 Seconds |
| Hot Start | < 5 Seconds |
| RTK Initialization | < 5 Seconds |
| Initialization Reliability | > 99.9% |
| RTK Accuracy | Horizontal: 8 mm + 1 ppm RMS Vertical: 15 mm + 1 ppm RMS |
| Static Accuracy | Horizontal: 2.5 mm + 0.1 ppm RMS Vertical: 3.5 mm + 0.4 ppm RMS |
| Correction Formats | RTCM V3.X, RTCM2.X, CMR |
| Data Output | GGA, ZDA, GSA, GSV, GST, VTG, RMC, GLL, Binary |
| Battery | Built-in Rechargeable Lithium-ion |
| Operating System | Linux |
| Bluetooth | Bluetooth 5.0 (BR + EDR, BLE) |
| Cellular Connectivity | Global 4G LTE |
| Tilt Compensation | MEMS IMU |
| Protection Rating | IP68 Dust & Waterproof |
| Typical Applications | RTK Surveying, Land Surveying, Construction Layout, GIS Mapping, Engineering Surveys & Infrastructure Projects |
Calibration, repair and accuracy testing for most professional brands.
We match the kit to your accuracy needs and budget, no upselling.
Phone, email or WhatsApp a person who actually knows the gear.
Cover project peaks or service downtime with short-term hire.
The E-Survey eRTK20 is a professional GNSS RTK receiver used for land surveying, construction layout, topographic surveys, GIS data collection, engineering projects, and mapping applications.
The receiver supports multiple GNSS constellations, including GPS, GLONASS, Galileo, BeiDou, QZSS, and SBAS, providing reliable positioning even in challenging environments.
When used with RTK corrections, the eRTK20 delivers centimeter-level positioning accuracy suitable for professional surveying and construction work.
Yes. The receiver features IMU-based tilt compensation, allowing surveyors to capture accurate points without keeping the survey pole perfectly vertical, improving productivity in the field.
