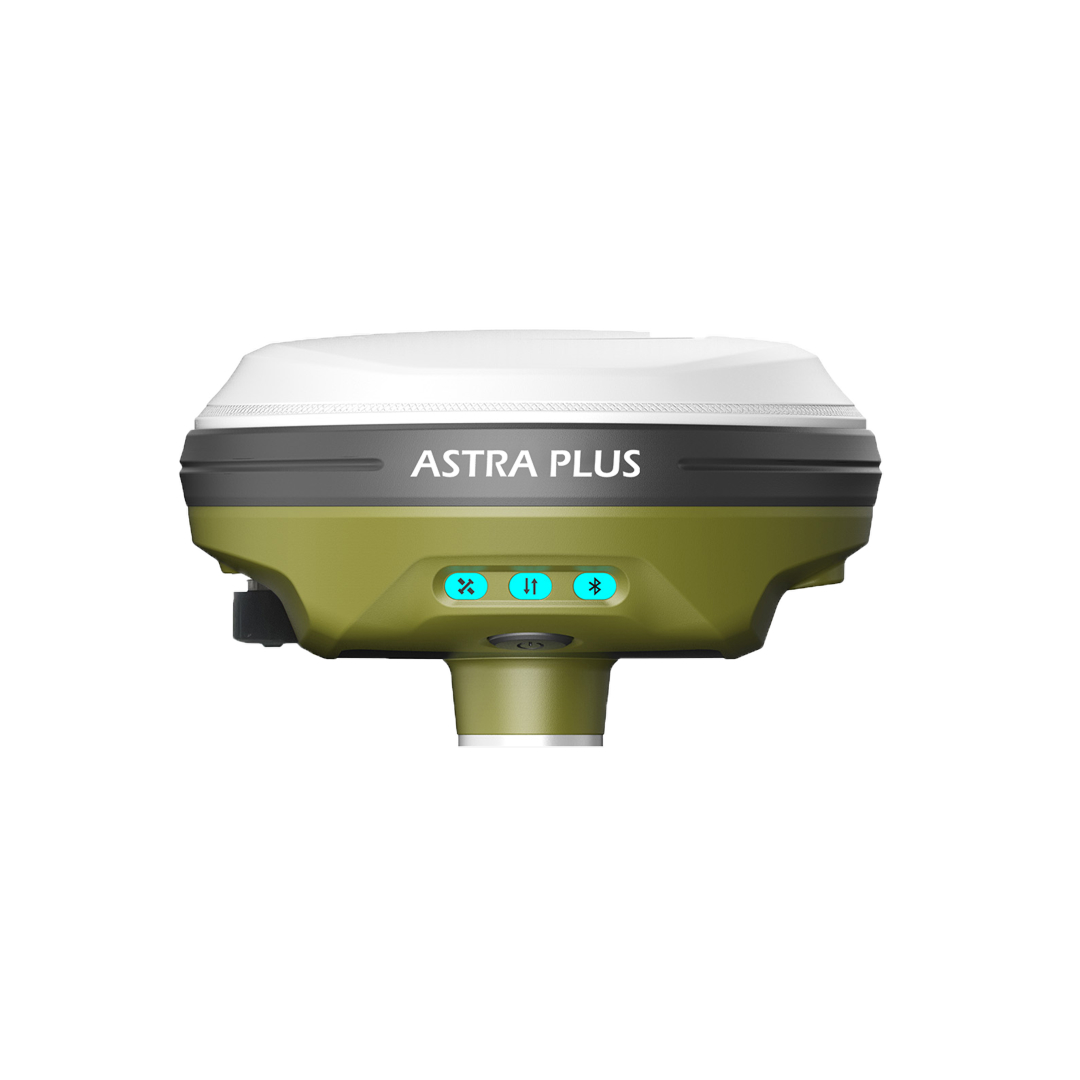

RinoNav Astra Plus is an advanced GNSS receiver with AR visual stakeout, 60° tilt survey, integrated UHF communication, and high-precision RTK positioning, making surveying, construction layout, and mapping faster and more efficient.
RinoNav Astra Plus is a compact, lightweight GNSS receiver featuring AR Live View stakeout, 1408-channel multi-constellation GNSS tracking, integrated UHF radio, and 60° IMU tilt compensation. Designed for both base and rover operations, it delivers reliable centimeter-level RTK accuracy while improving field efficiency through visual stakeout technology.
| Feature / Specification | Details |
|---|---|
| Product Name | RinoNav Astra Plus |
| Product Type | RTK GNSS Receiver |
| GNSS Channels | 1408 (2050 Optional) |
| Supported Constellations | GPS, BeiDou, GLONASS, Galileo, NavIC, QZSS, SBAS & L-Band PPP |
| Update Rate | Up to 20 Hz |
| Cold Start | < 30 Seconds |
| Warm Start | < 20 Seconds |
| Hot Start | < 5 Seconds |
| RTK Initialization | < 5 Seconds |
| Initialization Reliability | > 99.9% |
Calibration, repair and accuracy testing for most professional brands.
We match the kit to your accuracy needs and budget, no upselling.
Phone, email or WhatsApp a person who actually knows the gear.
Cover project peaks or service downtime with short-term hire.
The Astra Plus features AR Live View stakeout technology, allowing users to visually locate and stake out points faster and more accurately than traditional methods.
The receiver supports 1408 GNSS channels, providing reliable tracking of multiple satellite constellations for improved positioning performance.
The Astra Plus tracks major satellite constellations including GPS, GLONASS, Galileo, BeiDou, and QZSS for maximum coverage and reliability.
Yes. The receiver provides centimeter-level RTK positioning accuracy for professional surveying and mapping applications.
AR Live View uses the controller camera to visually guide users to stakeout points, making field layout faster, easier, and more intuitive.
