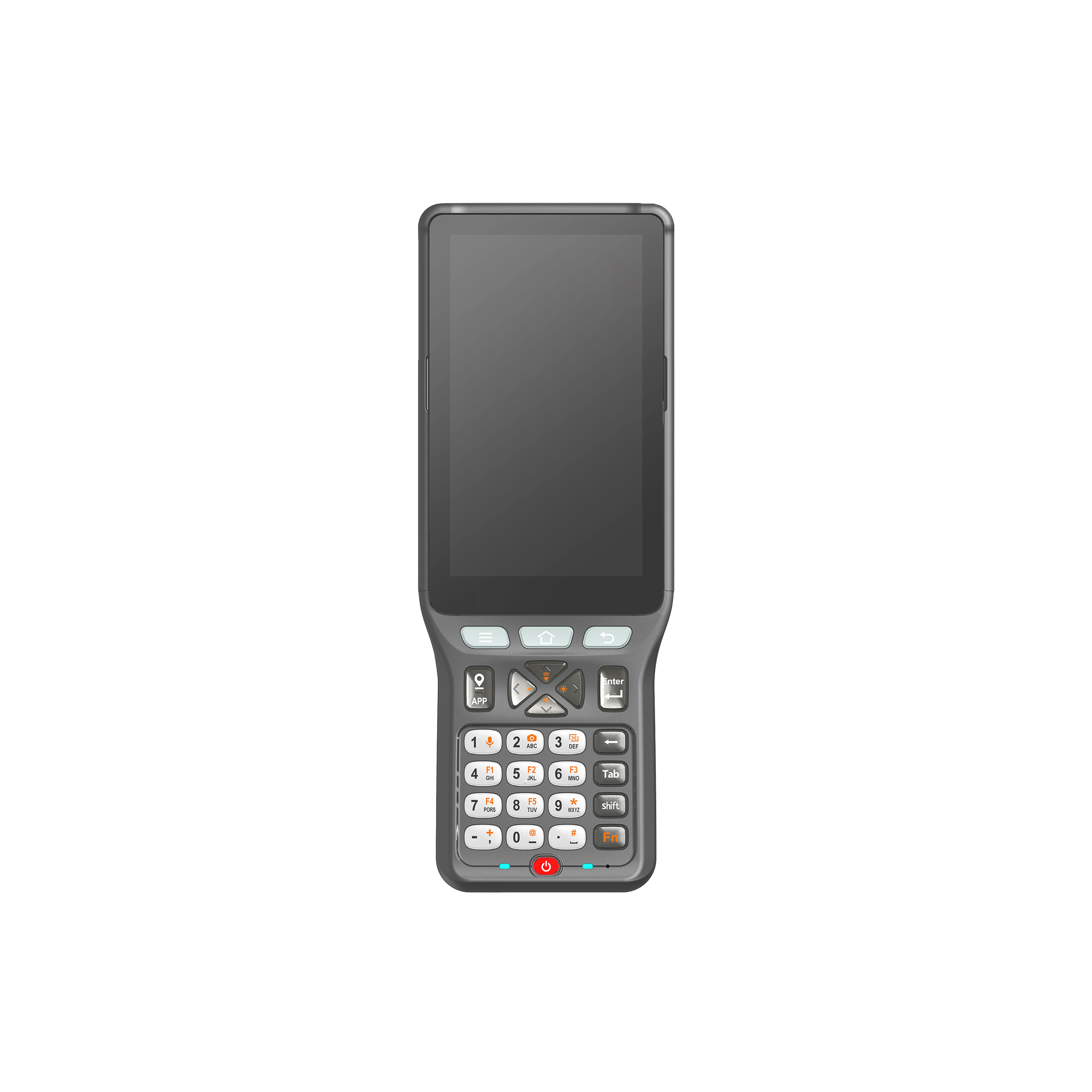

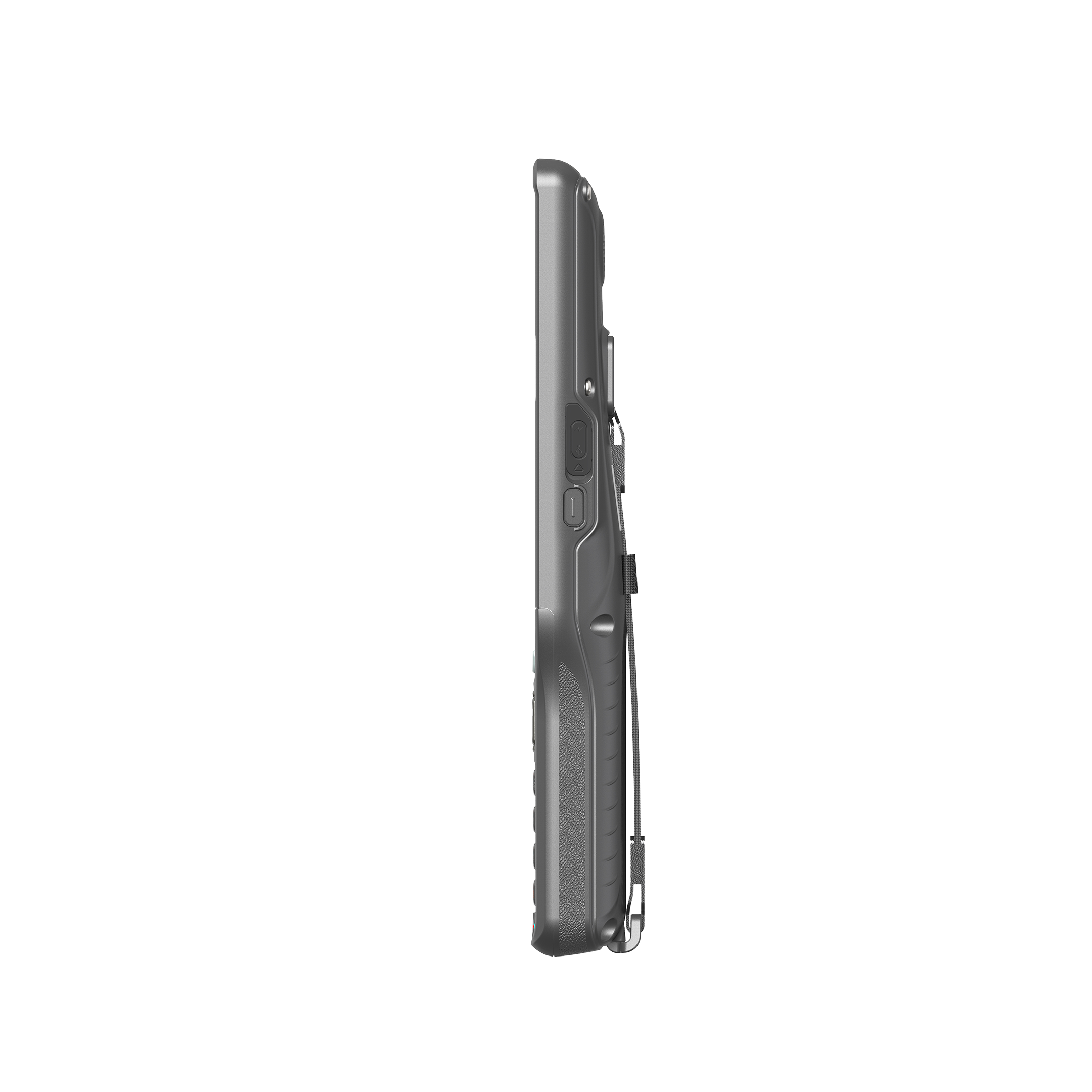

P9IV Android Handheld is a rugged, high-performance field controller designed for surveying, GIS, mapping, utility inspection, and construction applications. Featuring the latest Android operating system, advanced GNSS positioning support, a high-capacity battery, and an IP68-rated rugged design, it delivers reliable performance and seamless data collection in demanding outdoor environments.
The P9IV Android Handheld is a rugged and powerful field controller engineered for surveying, GIS mapping, utility management, construction, and geospatial data collection. Designed to perform in challenging environments, it combines advanced processing power, reliable connectivity, and durable construction to help professionals work efficiently in the field.
| Power Supply Specification | Details |
|---|---|
| Battery | Rechargeable Lithium-ion battery, 9000 mAh |
| Working Time | 22 hours |
| Charging Time | 3 hours (90%) |
| Sensor / Feature | Details |
|---|---|
| Speaker | Supported |
| Microphone | Supported |
| Light Sensor | Supported |
| Proximity Sensor | Supported |
| Magnetometer | Supported |
| Barometer | Supported |
| Gyroscope | Supported |
| Accelerometer | Supported |
| Gravity Sensor | Supported |
| Compass | Supported |
| Physical Specification | Details |
|---|---|
| Dimensions | 226.3 × 90.6 × 16.9 mm |
| Weight (with Battery) | 412 g |
| Operating Temperature | -20°C to +65°C |
| Storage Temperature | -30°C to +70°C |
| Water & Dust Protection | IP68 |
| Shock Resistance | 1.5 m drop onto marble |
| Humidity | 5%–95%, non-condensing |
| Certification | FCC, CE |
| Button | Quantity |
|---|---|
| Power | 1 |
| Arrow Keys | 4 |
| Recent Key | 1 |
| Home Key | 1 |
| Return Key | 1 |
| OK Key | 1 |
| APP Quick Button | 1 |
| Measurement Key | 1 |
| Backspace Key | 1 |
| FN Key | 1 |
| Dot Key | 1 |
| Space Key | 1 |
| Numeric Keys (0–9) | 10 |
| Alphabet Keys (A–Z) | 26 |
| Side Key | 1 |
| Dash Key | 1 |
| Aa Key | 1 |
Calibration, repair and accuracy testing for most professional brands.
We match the kit to your accuracy needs and budget, no upselling.
Phone, email or WhatsApp a person who actually knows the gear.
Cover project peaks or service downtime with short-term hire.
The P9IV combines rugged durability, reliable connectivity, long battery life, and professional-grade field performance, making it an ideal solution for modern surveying and GIS workflows.
Absolutely. The P9IV is optimized for GIS mapping, asset management, and field survey applications.
Surveying, construction, utilities, agriculture, forestry, environmental monitoring, and infrastructure management.
Yes, it includes 4G LTE connectivity for real-time data transfer and cloud synchronization.
