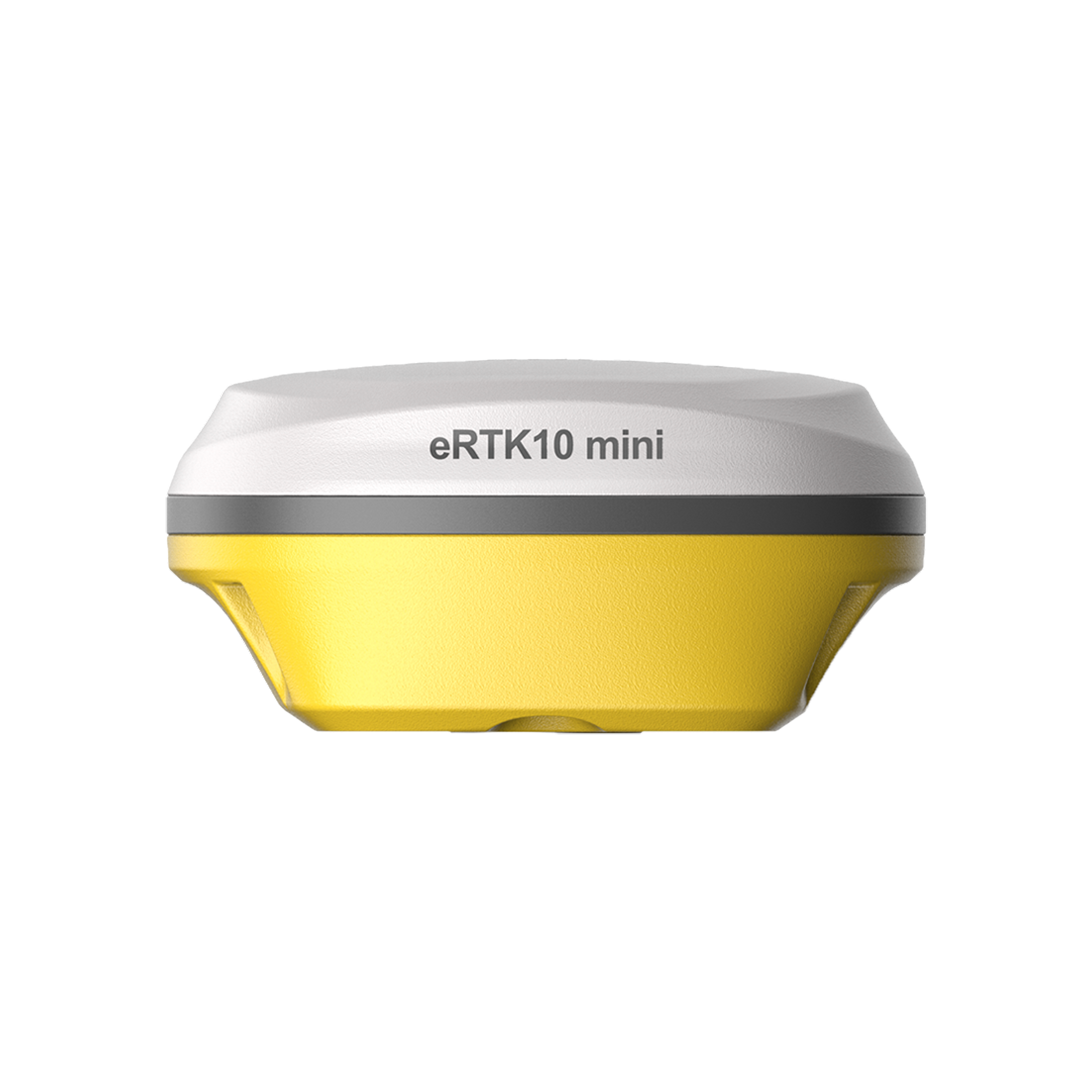

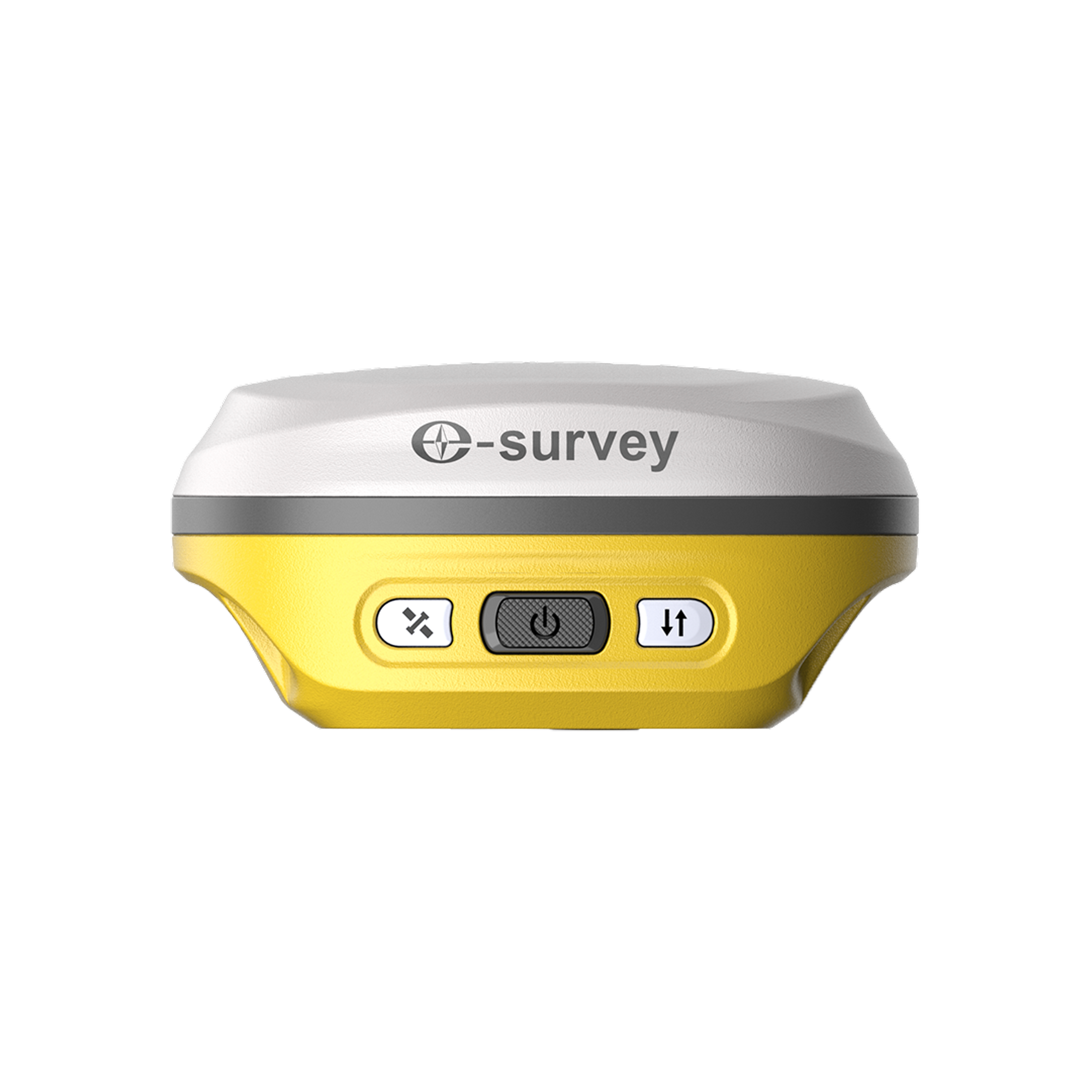

E-Survey eRTK10 Mini is a compact and lightweight GNSS receiver with 60° tilt survey, AR stakeout, and high-precision RTK positioning, providing efficient and reliable performance for surveying and mapping professionals.
The eSurvey eRTK10 is an AR visual stakeout GNSS RTK receiver built to make field stakeout faster and more intuitive, even for less experienced crews. A 1,408-channel multi-constellation engine is paired with a built-in camera and augmented-reality positioning, so the receiver overlays a live visual guide onto the real job site and the operator simply follows on-screen guidance to the point. No more pacing the pole back and forth. With a calibration-free 60 degree IMU tilt sensor, a rugged IP67 body and an exceptional 21-hour battery, the eRTK10 is an efficient all-day rover for construction, cadastral and topographic work. Its internal radio is receive-only, so it is purpose-built as a rover rather than a base.
| Feature / Specification | Details |
|---|---|
| Channels | 1,408 |
| Constellations | GPS, BeiDou, GLONASS, Galileo, QZSS, NavIC, SBAS, L-Band |
| RTK initialisation | Under 5 seconds |
| Initialisation reliability | Over 99.9% |
| Update rate | 20 Hz |
| Feature / Specification | Details |
|---|---|
| RTK | H 8 mm + 1 ppm, V 15 mm + 1 ppm |
| Static | H 2.5 mm + 0.5 ppm, V 5 mm + 0.5 ppm |
| Visual stakeout | 3 cm |
| Tilt compensation | Calibration-free, up to 60 degrees |
| Feature / Specification | Details |
|---|---|
| Internal radio | Receive only, 410 to 470 MHz |
| Bluetooth | 5.0 + EDR / BLE |
| Wi-Fi | 802.11 a/b/g/n/ac |
| Data port | USB Type-C |
| Feature / Specification | Details |
|---|---|
| Dimensions | 152 mm dia. x 88 mm |
| Weight | 891 g |
| Battery | 13,600 mAh Li-ion |
| Working time | Up to 21 hours as rover |
| Protection | IP67 |
| Operating temperature | -30 to +60 degC |
| Drop rating | 1.2 m drop, 2 m pole topple |
| Feature / Specification | Details |
|---|---|
| Operating system | Linux |
| Internal memory | 8 GB |
| Camera | 2 MP, 88 degree field of view |
| Control | Web UI, intelligent voice |
Calibration, repair and accuracy testing for most professional brands.
We match the kit to your accuracy needs and budget, no upselling.
Phone, email or WhatsApp a person who actually knows the gear.
Cover project peaks or service downtime with short-term hire.
An onboard camera overlays a live augmented-reality guide on the job site so you simply follow on-screen guidance to the point, which eSurvey rates at up to 50% faster than conventional stakeout.
No. Its internal radio is receive-only, so it is purpose-built as a rover; for a base you would pair it with a separate base such as the eBase 20.
Up to 21 hours as a rover with the camera running from its 13,600 mAh battery, comfortably more than a full working day.
Yes, calibration-free tilt up to 60°, so you can measure points while standing or walking without levelling the pole.
RTK accuracy is 8 mm + 1 ppm horizontal and 15 mm + 1 ppm vertical, with visual stakeout to about 3 cm.
