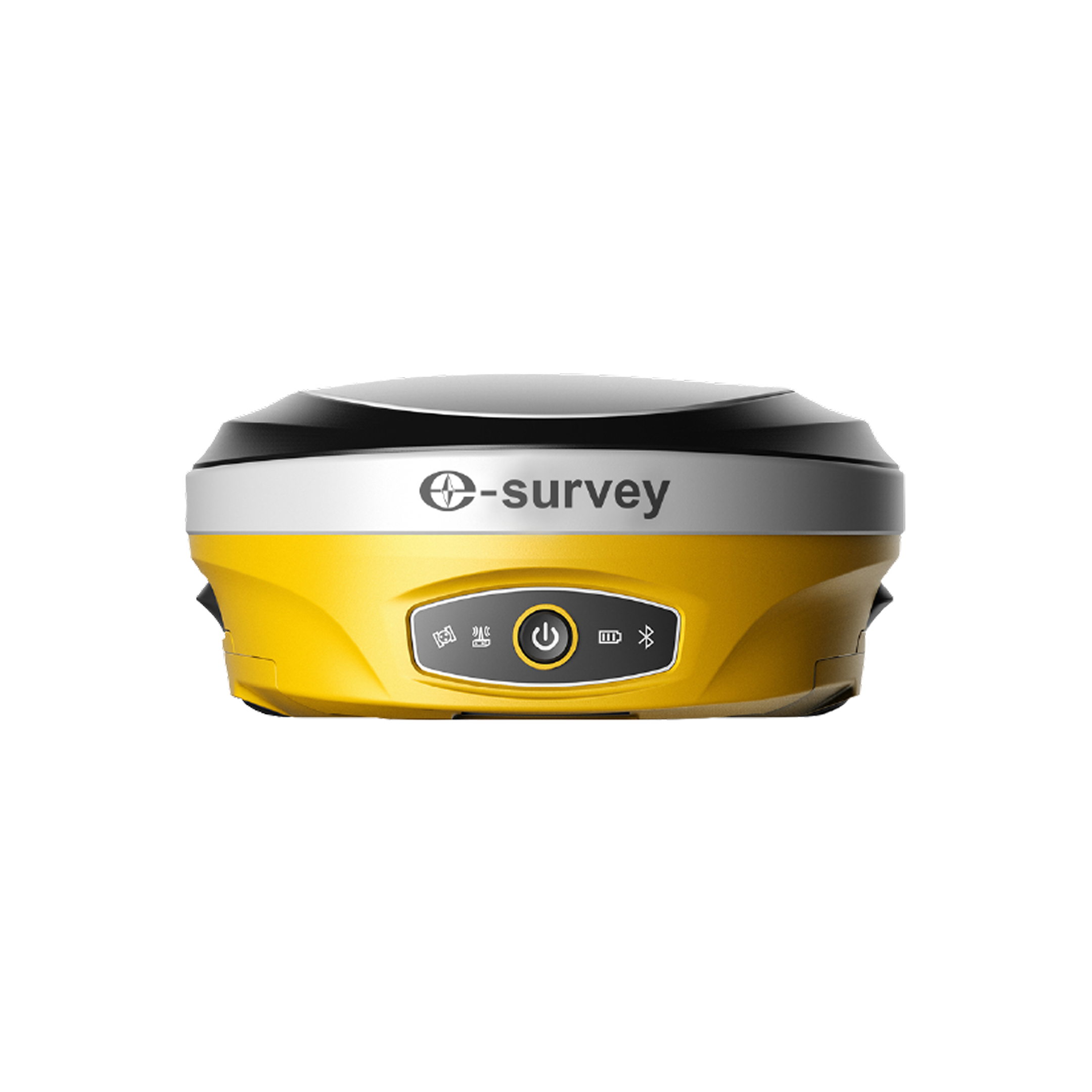

Designed for professional surveyors who demand exceptional accuracy and uninterrupted field performance, this advanced GNSS receiver combines 1408-channel multi-constellation tracking, hot-swappable dual batteries, fast RTK initialization, and 60° IMU tilt compensation. It delivers reliable positioning, all-day productivity, and high-precision data collection for surveying, construction, GIS, and infrastructure projects.
Built to meet the demands of modern surveying professionals, this advanced GNSS receiver delivers industry-leading positioning performance with fast initialization, exceptional accuracy, and reliable connectivity for every surveying application. Supporting 1408 GNSS channels and tracking GPS, BeiDou, GLONASS, Galileo, NavIC, QZSS, SBAS, and L-Band PPP signals, it ensures stable positioning even in challenging environments. One of its biggest advantages is the dual removable hot-swappable lithium-ion batteries, allowing surveyors to replace batteries without shutting down the receiver. This eliminates workflow interruptions and provides up to 22 hours of continuous rover operation, making it ideal for long working days. Integrated MEMS IMU technology enables dynamic tilt surveying up to 60°, allowing accurate measurements without keeping the survey pole perfectly vertical. Fast RTK initialization in less than five seconds and an update rate of up to 20Hz help improve efficiency while maintaining survey-grade accuracy. The receiver is equipped with global 4G LTE connectivity, Bluetooth 5.0, Wi-Fi, USB Type-C communication, and an integrated UHF radio, providing flexible communication options for RTK corrections and field data transfer. Designed to withstand harsh field environments, the receiver features an IP68-rated housing, survives a 2-metre pole tip-over and a 1.2-metre free drop, and operates in temperatures ranging from -30°C to +65°C. Whether performing cadastral surveys, construction staking, topographic mapping, engineering surveys, GIS data collection, mining, utilities, or infrastructure projects, the E-Survey E600 provides the speed, reliability, and precision required by today's surveying professionals.
| Feature / Specification | Details |
|---|---|
| Product Name | E-Survey E600 Receiver |
| Product Type | RTK GNSS Receiver |
| GNSS Channels | 1408 |
| Supported Constellations | GPS, BeiDou, GLONASS, Galileo, NavIC, QZSS, SBAS & L-Band PPP |
| Update Rate | Up to 20 Hz |
| Signal Reacquisition | < 1 Second |
| Cold Start | < 30 Seconds |
| Warm Start | < 20 Seconds |
| Hot Start | < 5 Seconds |
| RTK Initialization | < 5 Seconds |
| Initialization Reliability | > 99.9% |
| RTK Accuracy | Horizontal: 8 mm + 1 ppm RMS Vertical: 15 mm + 1 ppm RMS |
| Static Accuracy | Horizontal: 2.5 mm + 0.1 ppm RMS Vertical: 3.5 mm + 0.4 ppm RMS |
| Battery | Dual Hot-Swappable 7.2V 3400 mAh Lithium-ion Batteries |
| Battery Life | Up to 22 Hours (Rover Mode) |
| Charging Time | Approximately 4 Hours |
| Charging Voltage | 9–28V DC |
| Operating System | Linux |
| Bluetooth | Bluetooth 5.0 |
| Wi-Fi | IEEE 802.11 b/g/n/ac |
| Cellular Connectivity | Global 4G LTE |
| Tilt Compensation | MEMS IMU up to 60° |
| Internal Memory | 8 GB |
| Protection Rating | IP68 Dust & Waterproof |
| Operating Temperature | -30°C to +65°C |
| Typical Applications | Land Surveying, Construction Layout, GIS Mapping, Engineering Surveys, Infrastructure & Utility Projects |
Calibration, repair and accuracy testing for most professional brands.
We match the kit to your accuracy needs and budget, no upselling.
Phone, email or WhatsApp a person who actually knows the gear.
Cover project peaks or service downtime with short-term hire.
The E-Survey E600 is designed for land surveying, construction staking, topographic surveys, engineering projects, GIS mapping, utility surveys, mining, and infrastructure development.
The receiver tracks GPS, BeiDou, GLONASS, Galileo, NavIC, QZSS, SBAS, and L-Band PPP signals, providing excellent satellite availability and positioning reliability.
The E600 provides RTK accuracy of 8 mm + 1 ppm horizontally and 15 mm + 1 ppm vertically, making it suitable for high-precision surveying applications.
The E600 features dual hot-swappable batteries, 1408 GNSS channels, fast RTK initialization, 60° IMU tilt compensation, and global 4G connectivity for uninterrupted professional surveying.
With its dual removable batteries, the E600 provides up to 22 hours of continuous operation in rover mode, allowing surveyors to work throughout the day without interruption.
