Powerful Satellite Tracking Ability
Improve your survey job with an inbuilt GNSS chip that can receive GPS, BDS, and GLONASS signals with sub-meter-level accuracy.
Full-HD Display
Work dry or in the rain with a high brightness sunlight readable panel, 6-inch, with a resolution of 1920*1080 px.
Distinctive Performance
- Continuously works a whole day with no fear of dead batteries after a long field day, with its 8000 mAh rechargeable and replaceable lithium-ion battery.
- Supports 4G LTE internet to communicate without limitation, with its dual SIM card module.
Full-featured Handheld

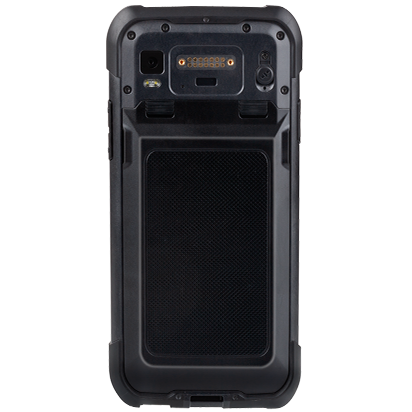

Treat it like your cellphone-call, text, take photos, etc. The pogo pin behind its back allows an external module mounted on top.
Data sheet
| Product | UT12P |
| System | |
| Processor | Qualcomm MSM8953 Pro Octane-Core 2.2 GHz |
| OS | Android 10.0 |
| Memory | 4 GB |
| ROM | 64 GB |
| Screen | |
| Screen size | 6” |
| Resolution | 1920 x 1080 |
| Density | 480 dpi |
| Brightness | 450 nits |
| Touch panel | Capacitive |
| Camera | |
| Rear | 13 MP |
| Flashlight | Support |
| Autofocus | Support |
| Power Supply | |
| Battery | Rechargeable and replaceable Lithium-ion battery 3.8 V, 8000 mAh |
| Working time | >15 hours |
| Charging time | ≤ 7 hours |
| Speaker | Support |
| Microphone | Support |
| Light | Support |
| Proximity | Support |
| Magnetometer | Support |
| Gyroscope | Support |
| Accelerometer | Support |
| Gravity | Support |
| Compass | Support |
| Barometer | Support |
| GNSS | |
| Tracking | GPS, BDS, GLONASS, GALILEO |
| Accuracy | Single: 1 – 3 m |
| Communication | |
| GSM | GSM, WCDMA, LTE
Nano SIM x 2 |
| Wi-Fi | 802.11 a/b/g/n/ac (2.4 & 5GHz) |
| Bluetooth | V4.1 |
| SD card | Up to 128 GB |
| USB | USB Type-C x 1
Support OTG and headphone |
| Physical | |
| Dimension | 191.6 mm x 91 mm x 14.5 mm |
| Weight | 375g with battery
230g without battery |
| Operating temperature | -20℃ – +60℃ |
| Storage temperature | -40℃ – +70℃ |
| Water / dust-proof | IP 68 |
| Shock | Survive a 1.5 m drop on concrete floor |
| Humidity | 0-95% RH, non-condensing |
| Buttons | PTT x 1
Volume (+/-) x 1 Power x 1 FN x 3 |
| Certificate | FCC, CE, ROHS, REACH, WEEE, RCM, E-mark |
